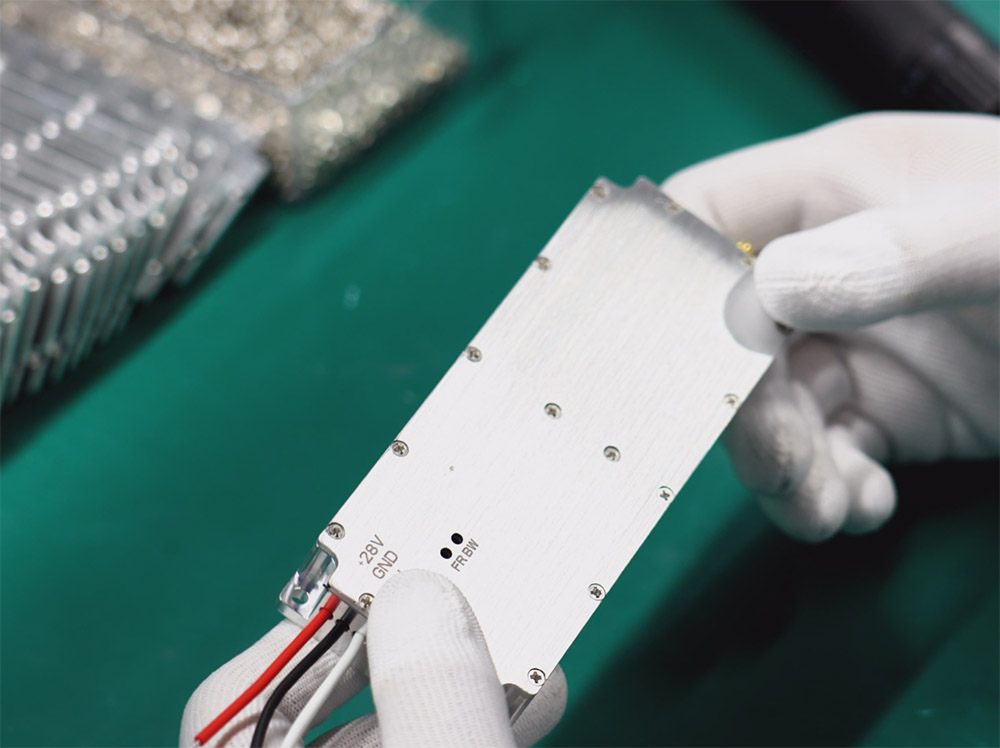

High Power Drone Jammer Module
50W / 100W / 150W RF jamming modules for anti-drone systems — multi-band, long-range, built for integration.
High Power Module Series
Choose from different power levels and frequency bands for your anti‑drone integration.
Core Specifications Comparison
Quickly compare models to find the best fit for your project.

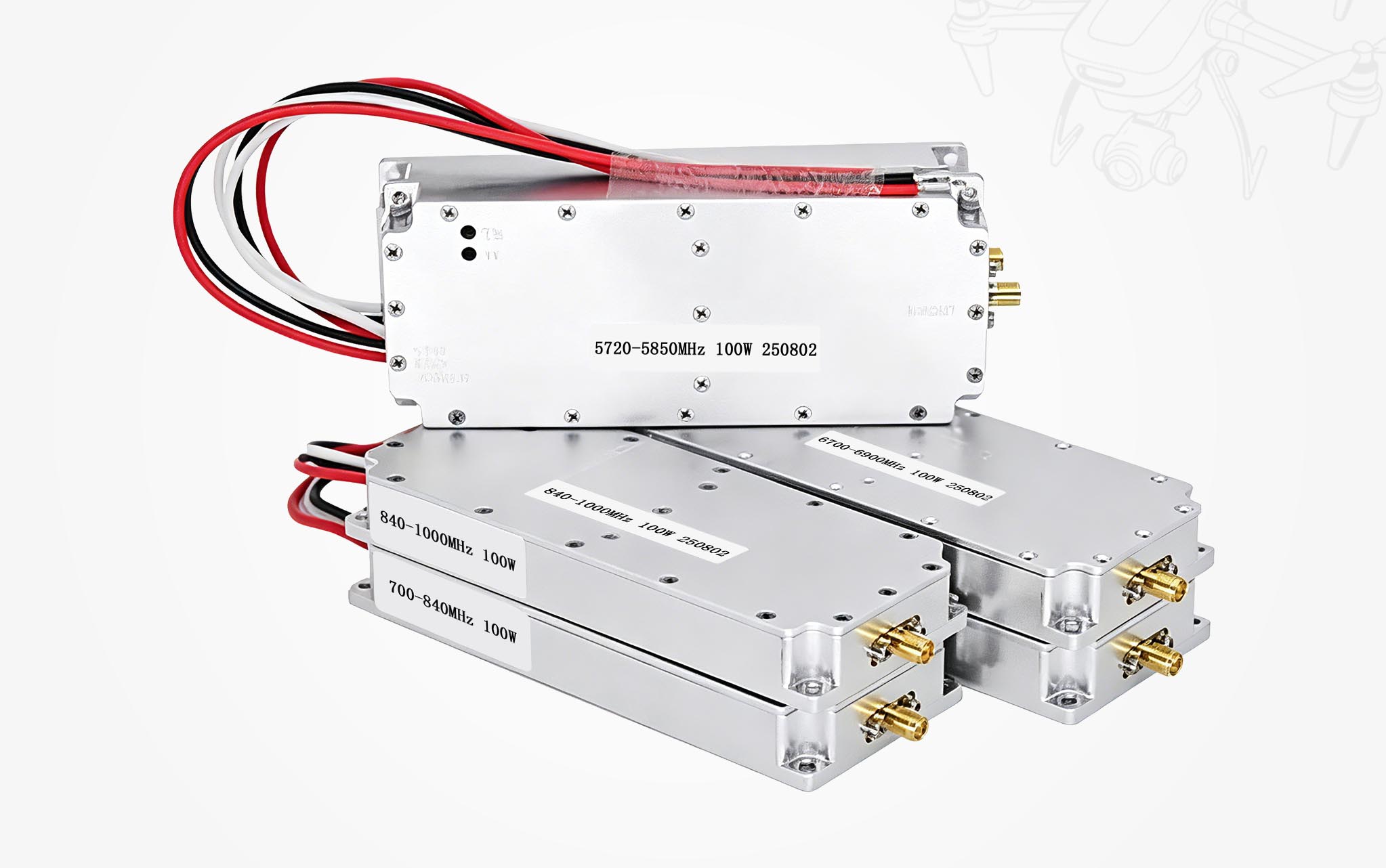

| Parameter | BNT-JM50 | BNT-JM100 | BNT-JM150 |
|---|---|---|---|
| Output Power | 50W | 100W | 150W |
| Frequency Range | Full-band configurable | Full-band configurable | Full-band configurable |
| Supply Voltage | DC 24–28V | DC 28–32V | DC 24–29V |
| Current Consumption | ≤3.2–4.5A | ≤9.2A | ≤15.0A |
| Dimensions | 117×58×18 mm | 150×80×22 mm | 168.5×84.5×23 mm |
| RF Connector | SMA Female/N‑Type Female | SMA Female/N‑Type Female | SMA Female/N‑Type Female |
| Substrate / Technology | GaN‑on‑SiC, copper heatsink | GaN‑on‑SiC, copper heatsink | GaN‑on‑SiC, copper heatsink |
| Customization | support | support | support |
Technical Advantages
Why choose our high‑power modules — stable, reliable, and easy to integrate.
Efficient PA Design
GaN / GaAs amplifiers deliver high linearity and low spurious emissions, ensuring clean and powerful jamming signals that meet strict EMC requirements.
Intelligent Thermal Management
Temperature‑controlled fans and over‑temperature protection support 7×24h continuous operation. The aluminum housing accelerates heat dissipation even under full load.
Modular Architecture
Standardised dimensions and mounting holes simplify integration into fixed, vehicle‑mounted, or portable C‑UAS systems, reducing development time.
Flexible Multi‑Band Configuration
Customise frequency combinations from 433M to 6GHz to target specific drone models and comply with regional spectrum regulations.
Multiple Protection Circuits
Over‑voltage, over‑current, and VSWR protection enhance reliability in harsh environments, minimising downtime and extending service life.
Remote Monitoring Interface
RS485 / LAN ports enable host‑computer control and real‑time status feedback, facilitating integration into command‑and‑control networks.
Application Scenarios
Find the right module configuration for your project.

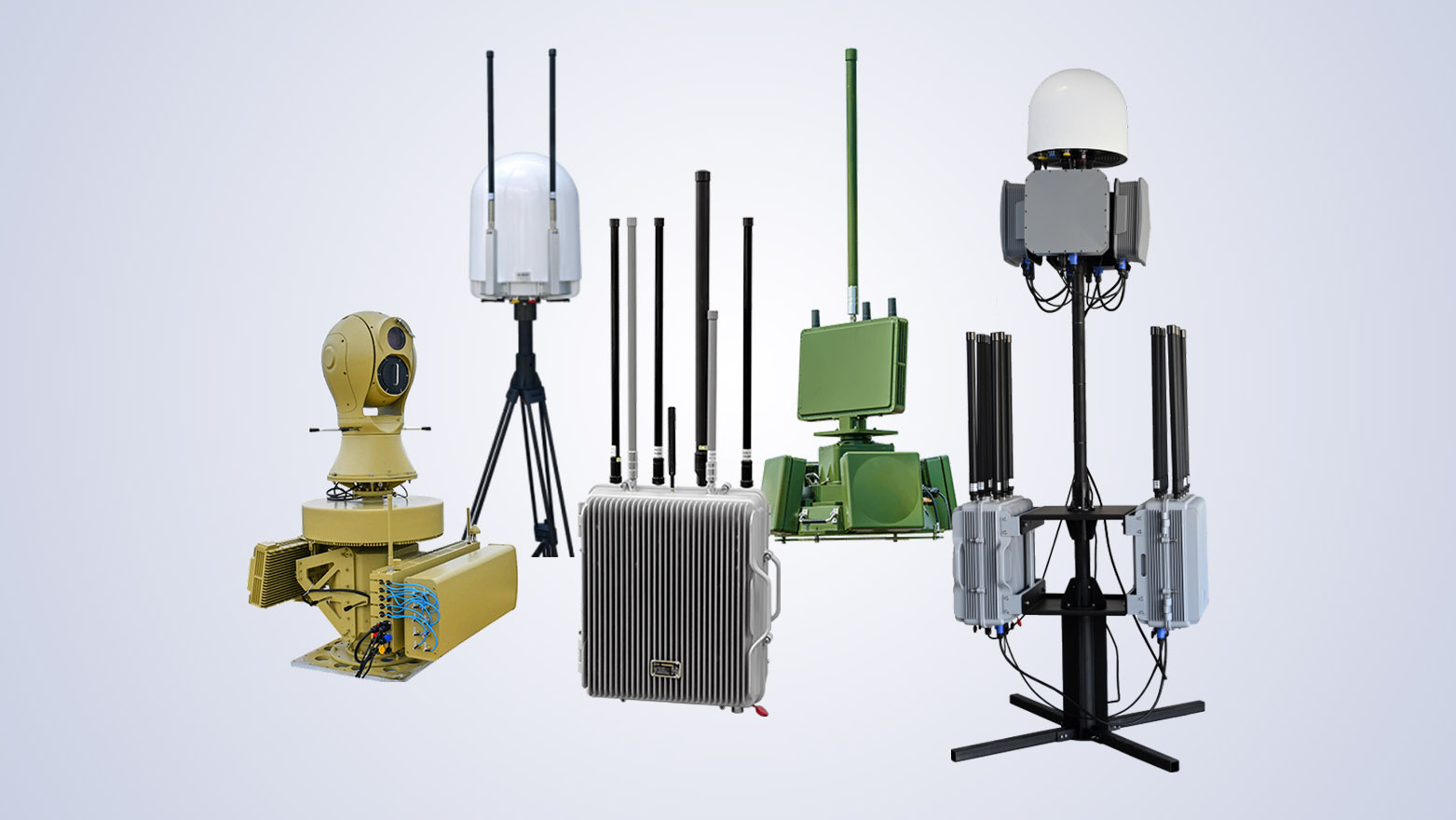

Fixed Anti‑Drone Systems
For airports, prisons, and nuclear power plant perimeters. Recommended 100W–200W full‑band modules with 7×24h continuous operation.
Recommended: 100W / 200W Full‑band

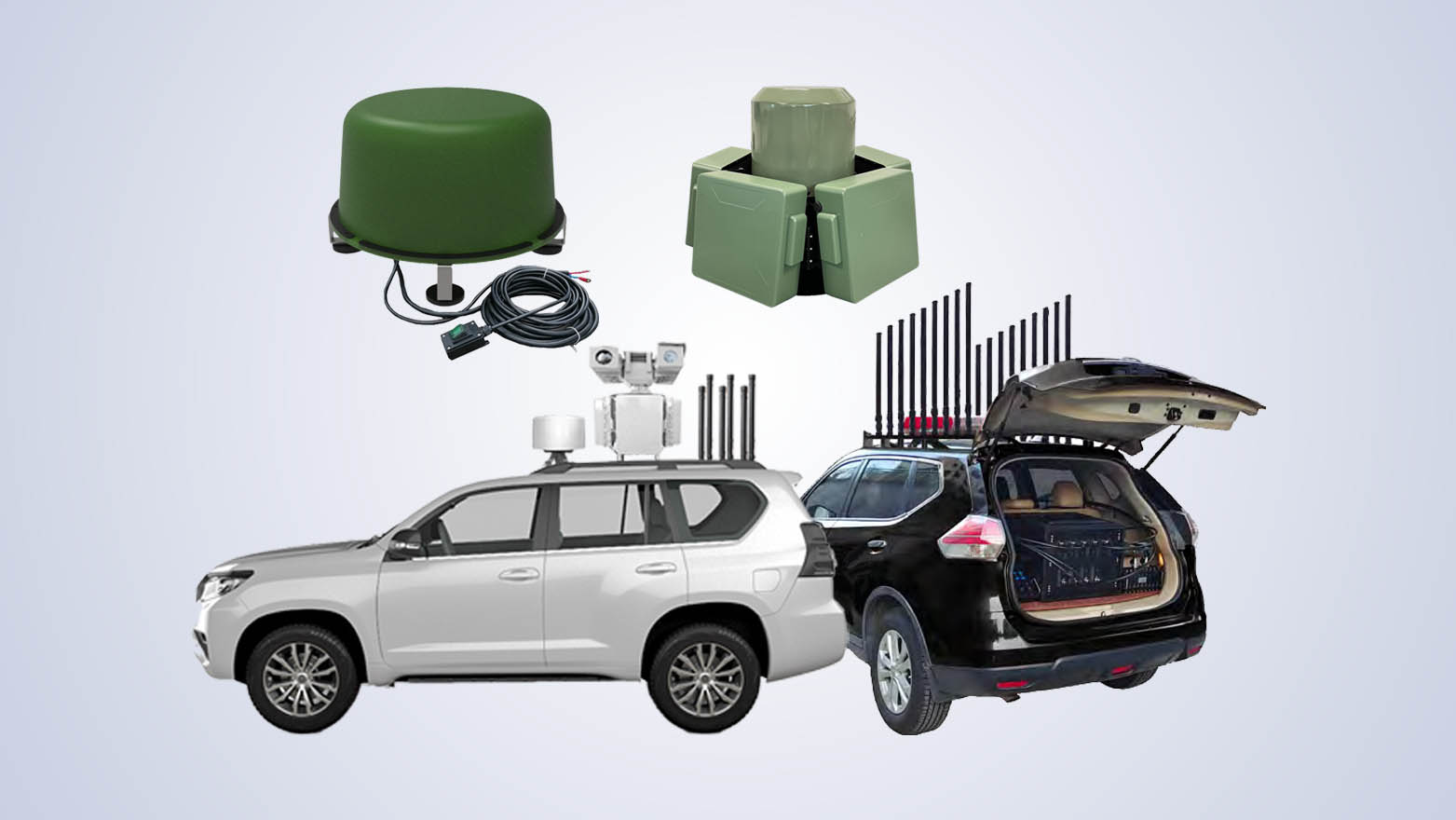

Vehicle‑Mounted Mobile Systems
For convoy protection and patrol. 100W+ multi‑band modules covering 2.4G / 5.8G / GPS are ideal for mobile scenarios.
Recommended: 100W Multi‑band

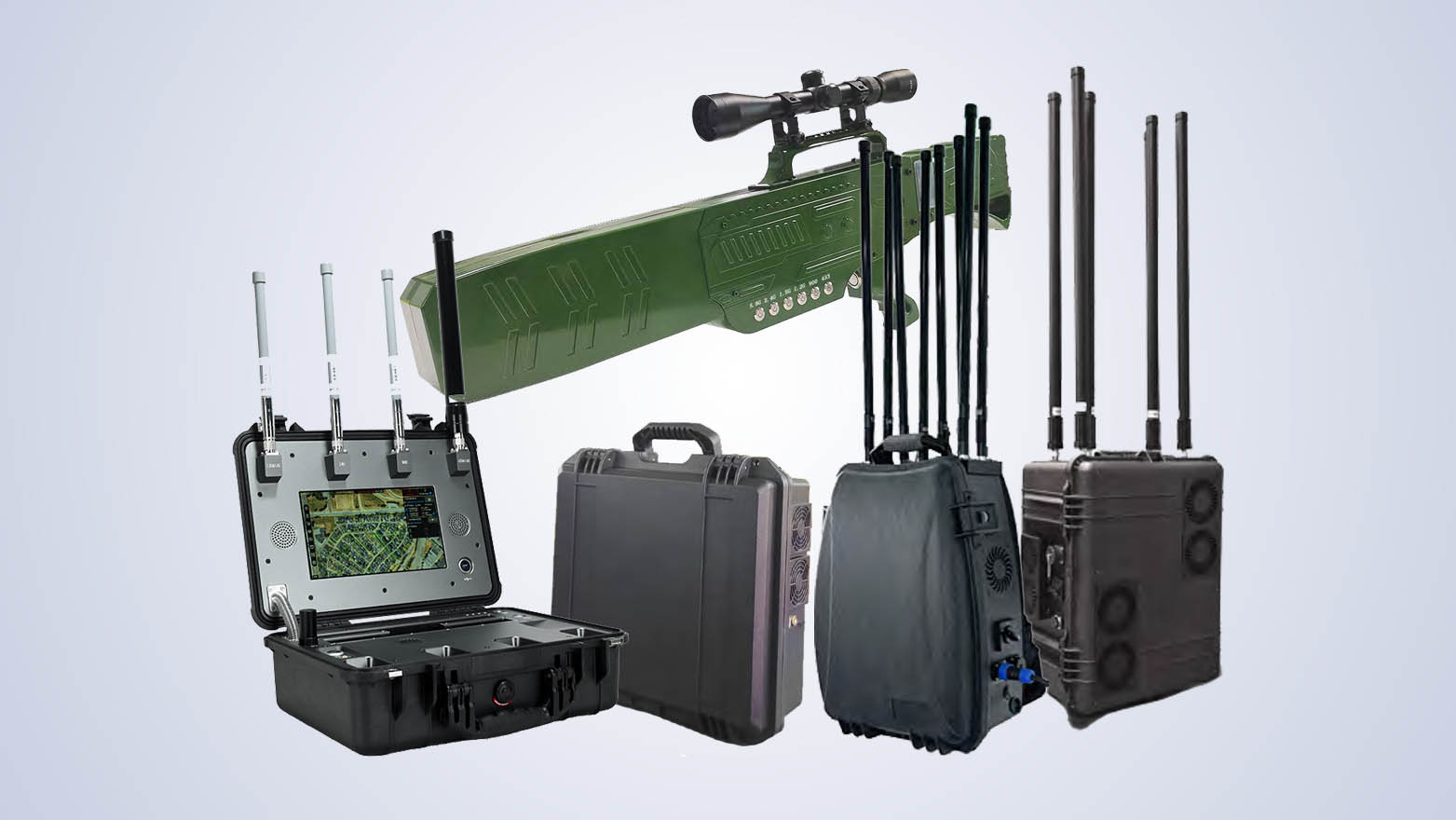

Portable Jammer Guns / Devices
For VIP protection and temporary security. Lightweight 50W modules with custom bands provide rapid response to emerging threats.
Recommended: 50W Custom Bands

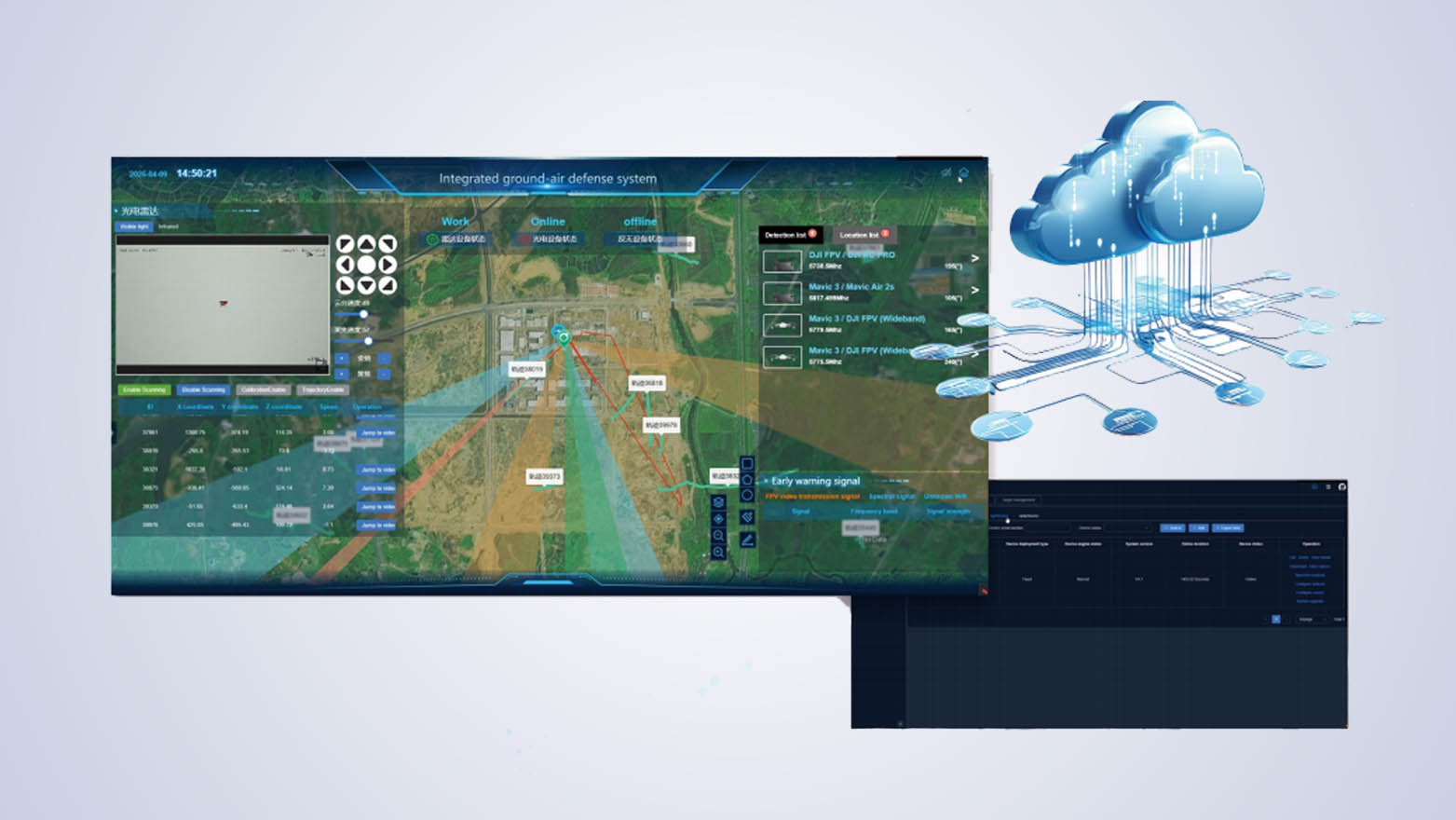

Drone Control Platform Command Center
For large‑event security. 150W+ high‑power modules with LAN interfaces enable centralised control and situational awareness.
Recommended: 150W + LANCustomization · OEM / ODM
Preferred by deep‑integration customers — tailor‑made solutions with fast response.
- 📡 Frequency band: 433M – 6GHz any combination
- ⚡ Output power: 20W, 30W, 50W, 80W, 100W, 200W, 500W
- 🔘 Interfaces: TTL, RS485, CAN, Ethernet
- 📐 Enclosure / mechanical: size, mounting holes, cooling method
- 💻 SDK and communication protocol documentation provided
- 🌐 Export compliance: CE / FCC, license assistance
