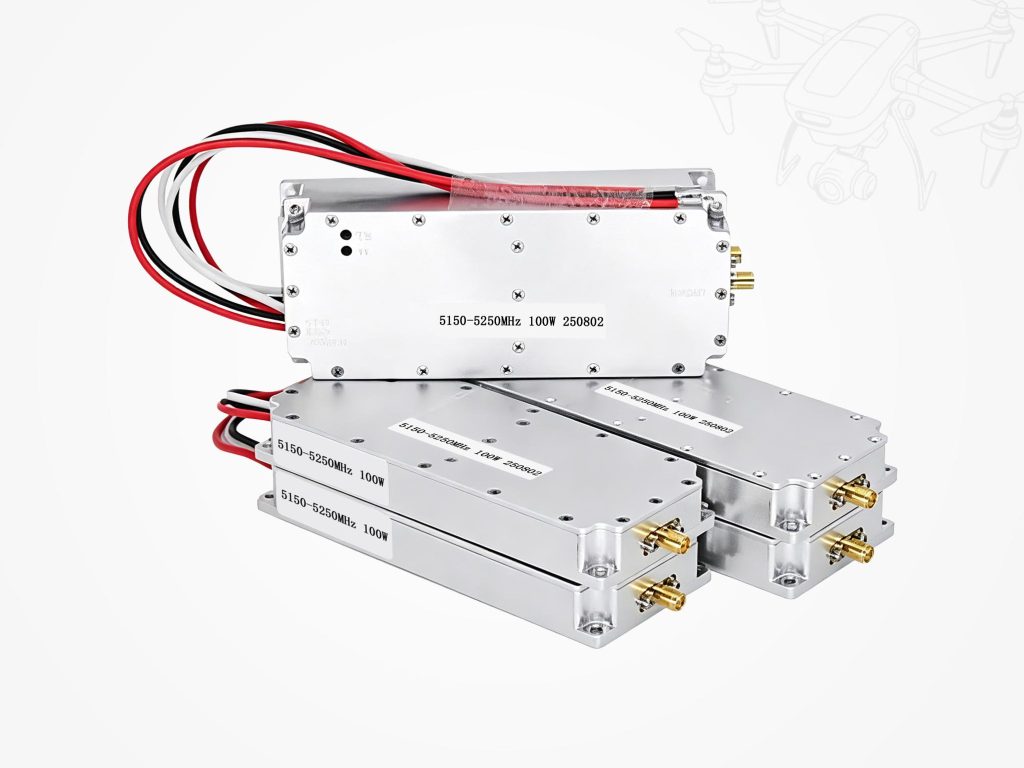

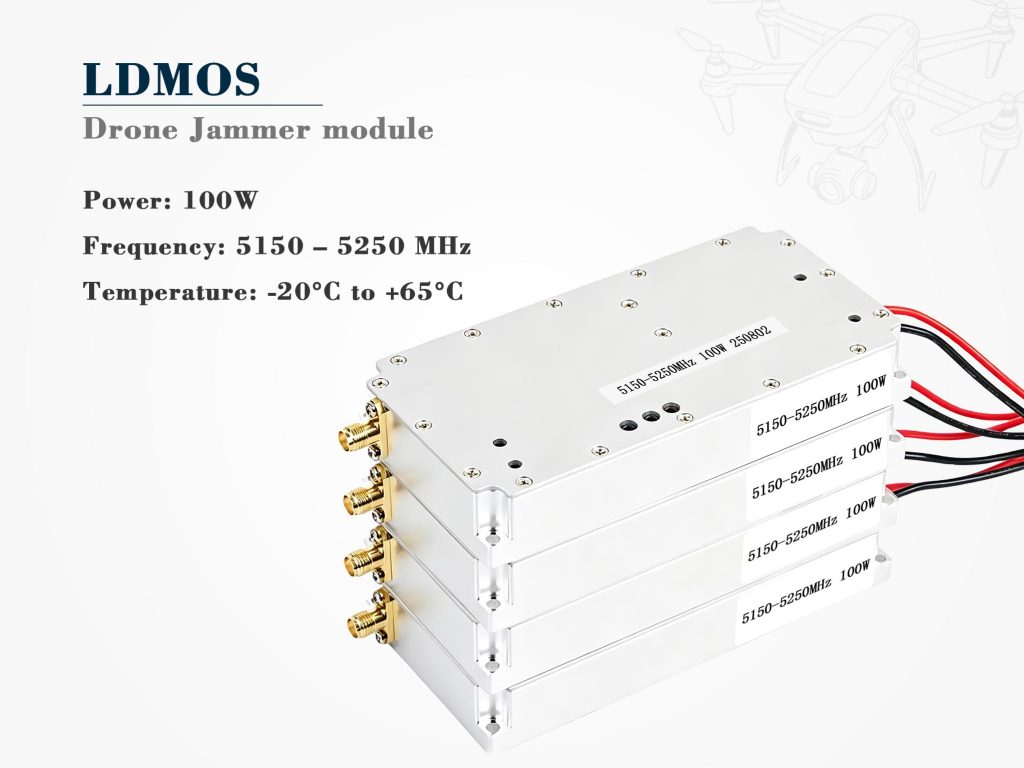

Powerful 100W Drone Jammer Module 5150-5250MHz

When you’re tasked with neutralizing rogue drones, a hardened 100W drone jammer module is often the core of an effective counter-UAS system. This particular module pumps out a genuine 100 watts (50±1 dBm) of continuous RF power from 5150 MHz to 5250 MHz, covering most commercial drone C-band links. Built around advanced LDMOS transistors, it turns DC power into a powerful broadband noise barrier right out of the box.

Core Features of the 100W Drone Jammer Module

Right away, you’ll notice the unit’s straightforward design. It integrates a high-speed noise modulation source, so there’s no need for an external signal generator. Flick the power switch and the module immediately sweeps the target band, drowning out control and FPV signals. The analog scan speed defaults to 270 KHz, which is fast enough to catch frequency-hopping drones, yet you can tweak it anywhere from 100 KHz to 500 KHz for specialized missions.

What Makes This 100W Drone Jammer Module Stand Out?

First, the LDMOS final stage delivers clean, reliable 100W power while keeping current draw under 9.2A at 28V DC. Second, the active protection circuits—over-voltage, over-temperature, and a dedicated power LED—mean you won’t fry the module during extended runs. The baseplate is a thick aluminum alloy that doubles as a heat spreader, keeping the amp cool even in harsh environments (-20°C to +65°C). And weighing just 800g in a 150×80×22mm envelope, it’s easy to integrate into vehicle-mounted or fixed-site systems.

Why a Built-in Noise Source Matters

Instead of complicated external waveform generators, this 100W drone jammer module arrives with an internal high-speed noise modulator. That’s a big deal in the field because you eliminate an entire box of supporting electronics. If your jammer deployment needs a very specific interference pattern, the team offers custom modulation sources—VCO, DDS, or even software-defined radio (SDR) cores—so you’re not locked into a single jamming technique.

Real-World Deployment and Integration

If you plan to integrate a 100W drone jammer module into a portable kit, the standard N-type female connector makes antenna pairing simple. Attach any 50-ohm directional antenna optimized for 5.2 GHz and you’ll focus the jamming energy into a tight beam. Many integrators combine several of these modules with our drone jammer amplifiers for multi-band spectrum denial. Before transmitting, always review FCC regulations or your local spectrum authority’s rules—high-power jamming is strictly controlled.

Pushing the Limits of the 100W Drone Jammer Module

Beyond the stock configuration, the module supports deep customization. The analog scan speed can be pushed from 100 KHz up to 500 KHz, which helps when facing agile frequency-hopping drones. Need a different modulation signature? You can swap the built-in noise source for a VCO, a direct digital synthesizer (DDS), or an SDR front-end. Each 100W drone jammer module is tested at full power before shipping, and we validate the full -20°C to +65°C operational envelope to guarantee field readiness.

Maintaining Peak Performance

Once installed, the module asks very little: keep the supply voltage between 28V and 32V, ensure the heatsink fins have some airflow, and watch the three LED indicators. The over-temp LED blinks if the case exceeds 65°C—simply pause operation or increase cooling. The robust LDMOS design also embeds thermal rollback, so the 100W drone jammer module protects itself during accidental mismatch or extended key-down periods.
