150W Anti-Drone Jamming Module – Powerful 1800–2000MHz Solution

When drone threats appear in sensitive zones, you need a countermeasure that simply works. The 150W Anti‑Drone Jamming Module delivers exactly that – no gimmicks, just solid RF power in a compact, field‑ready package. Covering 1800–2000MHz with a true 150W output, this GaN‑based analog module is built for integrators who value performance without excessive weight or complexity.

Why 1800–2000MHz Matters for Drone Mitigation

Most commercial and prosumer drones operate within the 1800–2000MHz band for control links and telemetry. By focusing jamming energy precisely here, the 150W Anti‑Drone Jamming Module effectively disrupts command pathways while keeping your system efficient. The built‑in high‑speed swept source ensures continuous coverage, making it harder for frequency‑agile drones to lock onto a clean channel.

Engineered for Real‑World Deployment

Field conditions are rarely perfect. That is why this module runs on a wide DC input range (24‑29V) and draws up to 15A under full load. The ≥40% efficiency is respectable for this power level, helping to manage heat in enclosed enclosures. More importantly, the absorption‑type VSWR protection (≤2.0) guards the amplifier against mismatched antennas – a common headache in rapid‑setup scenarios.

Thermal and Mechanical Highlights

• Operating temperature: -20°C to +65°C – suitable for both outdoor masts and indoor racks.

• Dimensions: 168.5×84.5×23 mm – slim enough for gimbal or portable cases.

• Weight: Only 0.55kg – reduces strain on UAV or handheld platforms.

The 150W Anti‑Drone Jamming Module uses a robust base material that withstands vibration and moderate shock, making it a favourite among defence integrators and security system designers.

Control and Connectivity Made Simple

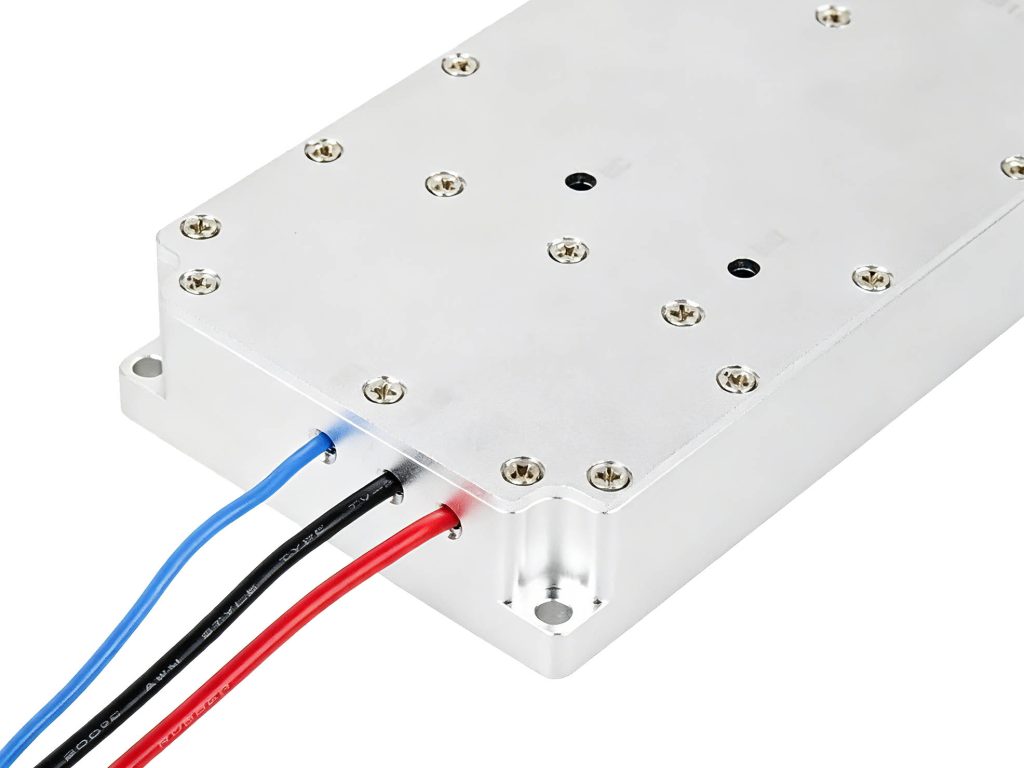

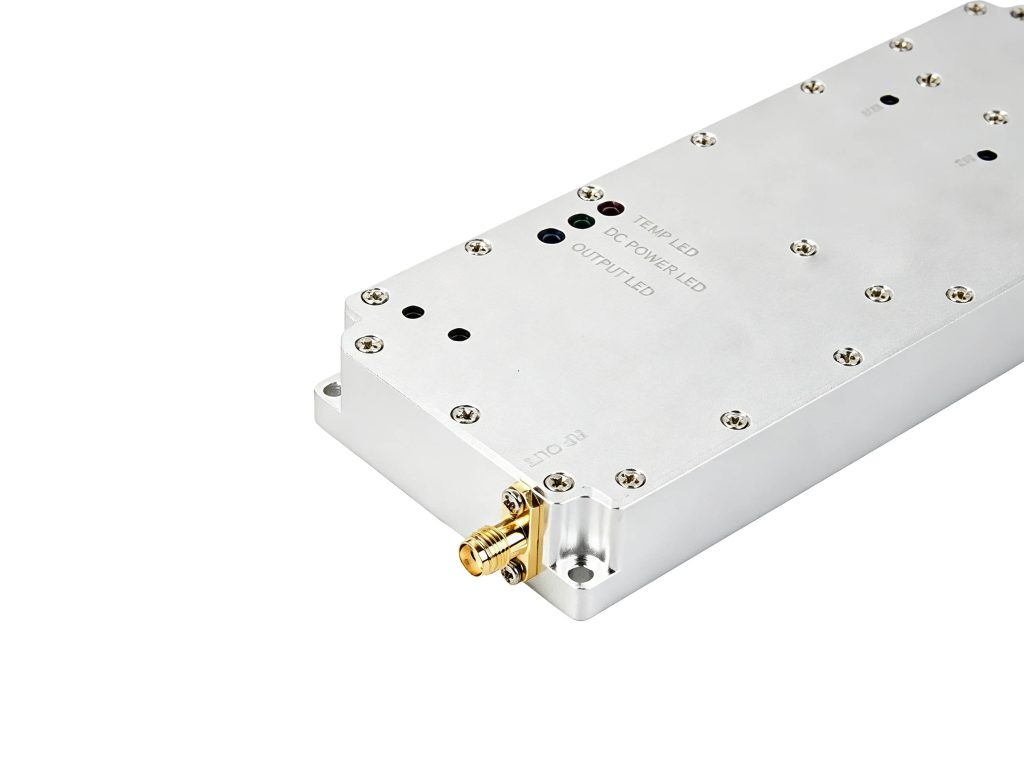

Switching the module on/off is straightforward: apply +5V or leave it floating for “on”, ground the pin for “off”. The SMA female output connector is industry‑standard, so you can pair it with various directional or omnidirectional antennas without adaptor hassles. There is no external driver required – the internal swept oscillator handles modulation autonomously.

Integration Tips

• Use a low‑PIM cable between the module and antenna to preserve output quality.

• Provide sufficient airflow when running continuous sweeps at 150W.

• Monitor the supply current – a sudden drop may indicate VSWR protection engagement.

Reliability Through Absorptive VSWR Protection

One feature that sets this 150W Anti‑Drone Jamming Module apart is its built‑in absorptive VSWR protection. Unlike reflective limiters that send reflected energy back into the amplifier, this module absorbs mismatched power, preventing thermal runaway and phase distortion. It is a small detail that significantly improves long‑term reliability, especially when testing unknown antennas in the field.

Common Use Cases

• Fixed‑site drone detection and jamming systems.

• Portable man‑pack or vehicle‑mounted counter‑UAS units.

• R&D labs testing drone immunity and receiver selectivity.

• Rapid‑deployment security perimeters for events or VIP convoys.

Final Verdict

The 150W Anti‑Drone Jamming Module offers a balanced mix of power, size, and ruggedness. It does not pretend to be a software‑defined miracle – it is a straightforward analog jammer that gets the job done. Whether you are upgrading an existing counter‑UAS system or starting a new integration, this module provides predictable performance backed by GaN efficiency and practical protection features.
