20W 720–1020MHz UAV Jammer Module | LDMOS Analog

Technology: LDMOS

Frequency Range: 900MHz

Connector Type: SMA Female

Output Power: 20W

Built for 720–1020 MHz This drone jammer module covers 720–1020 MHz. It uses an LDMOS amplifier and a built-in high-speed sweep source. It is an all-in-one analog jamming module for authorized UAV countermeasure systems. Output VSWR is ≤2.0. Efficiency is ≥40%. Power and Control Run it from DC 24–29 V. Max current draw is 2.5 ... Read more

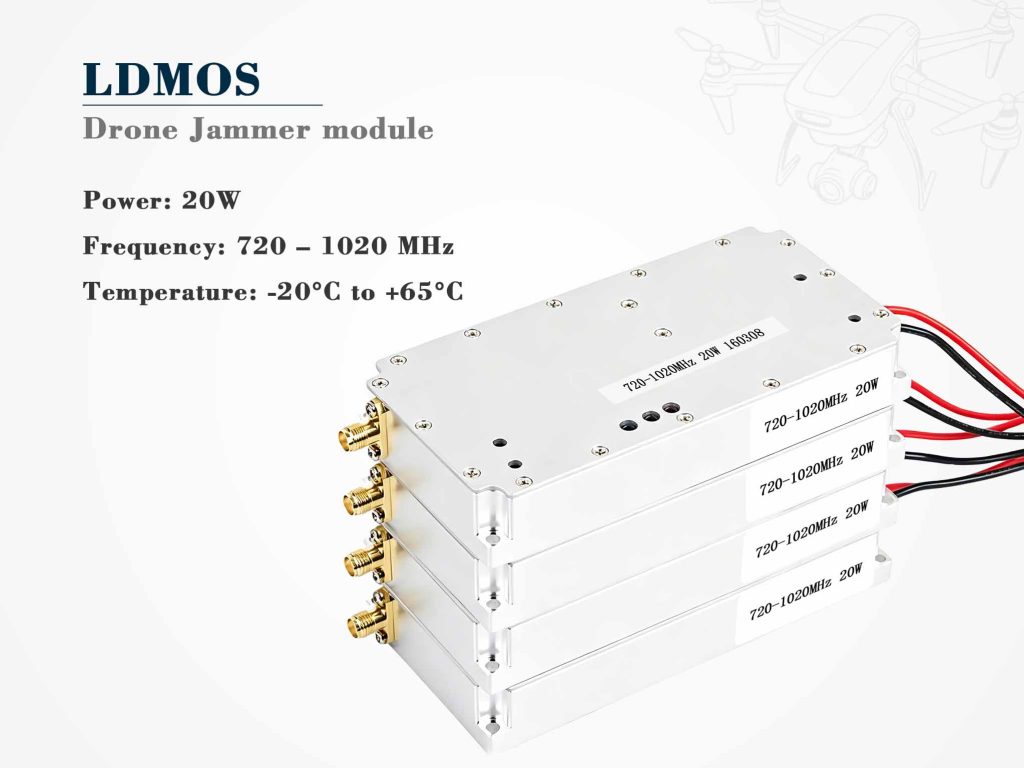

20W 720–1020MHz UAV Jammer Module | LDMOS Analog

Technical Specifications

Parameter	Specification	Notes
Frequency range	720–1020 MHz	Wideband UAV jamming band
Output power	20 W	Typical; efficiency ≥40%
Supply voltage	DC 24–29 V	Input range
Current draw	2.5 A max	At 24–29 V
Modulation source	Built-in high-speed sweep source	Analog jamming
Analog scan speed	High-speed analog sweep	Factory preset; custom profiles may be available
Input / output impedance	50 Ω nominal	SMA female output; VSWR ≤2.0
Protection LEDs	Power, over-voltage, over-temperature	LED status indicators
Operating temperature	-20 to +65 °C	Operating range
Dimensions (L×W×H)	115.5 × 46.5 × 21 mm	Compact housing
Weight	0.21 kg	Approx.
Base material	LDMOS amplifier platform	Metal housing; integrated analog module

Product Details

Built for 720–1020 MHz

This drone jammer module covers 720–1020 MHz. It uses an LDMOS amplifier and a built-in high-speed sweep source. It is an all-in-one analog jamming module for authorized UAV countermeasure systems. Output VSWR is ≤2.0. Efficiency is ≥40%.

20W 720–1020MHz UAV Jammer Module | LDMOS Analog

Power and Control

Run it from DC 24–29 V. Max current draw is 2.5 A. The switch control is simple: +5 V or floating = ON; ground = OFF. The RF output uses an SMA female connector. Keep the antenna matched.

Status and Protection

LEDs indicate power, over-voltage, and over-temperature. Operating temperature is -20 to +65 °C. The housing is compact at 115.5 × 46.5 × 21 mm. Weight is about 0.21 kg.

Practical Notes

Mount it with good grounding. Use a suitable antenna for the 720–1020 MHz band. Check local regulations before use. This is not a consumer device. It is intended for integrators and authorized deployments.

Frequently Asked Questions

Q: What frequency range does this module cover?

A: It covers 720–1020 MHz. It is designed for analog UAV jamming in that band. Real-world range depends on antenna, cable, and setup. Use it only in authorized environments.

Q: How much output power does it provide?

A: Typical output is 20 W. It runs from DC 24–29 V and draws up to 2.5 A. Efficiency is ≥40%. Keep VSWR at or below 2.0 for stable operation.

Q: What kind of jamming source is built in?

A: It has a built-in high-speed sweep source for analog interference. The module is an all-in-one LDMOS design. Scan profile is factory-set; custom profiles may be available.

Q: What should I check before powering it on?

A: Check supply voltage, antenna connection, and grounding. The control pin is +5 V or floating for ON, and ground for OFF. Watch the power, over-voltage, and over-temperature LEDs.
