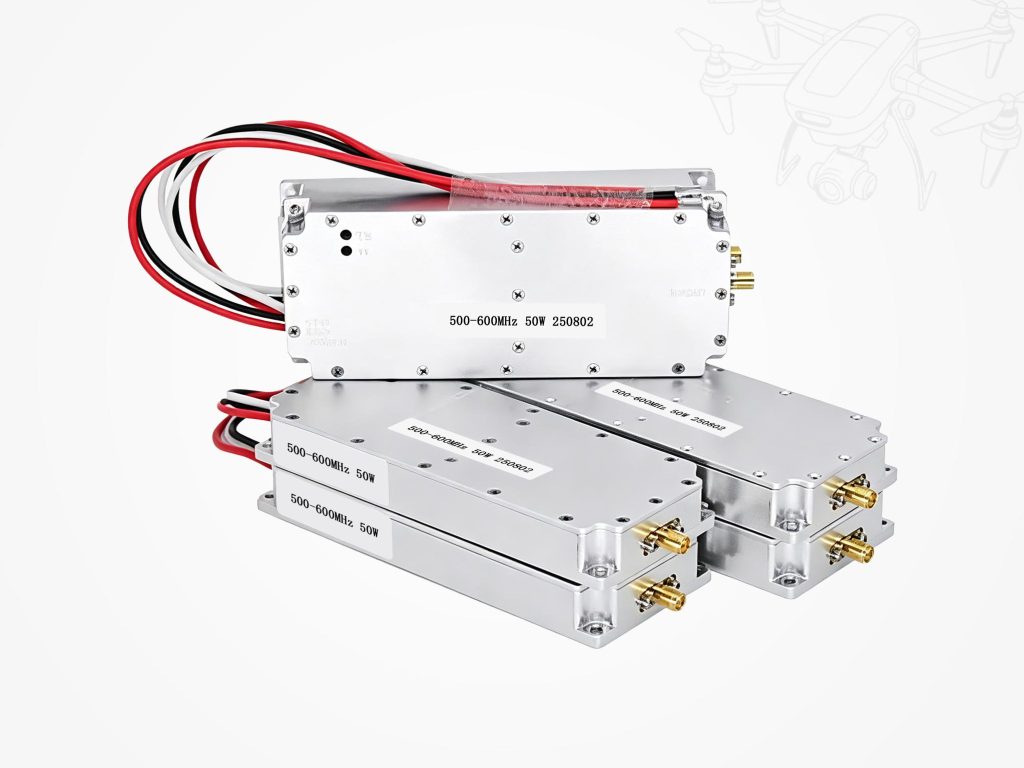

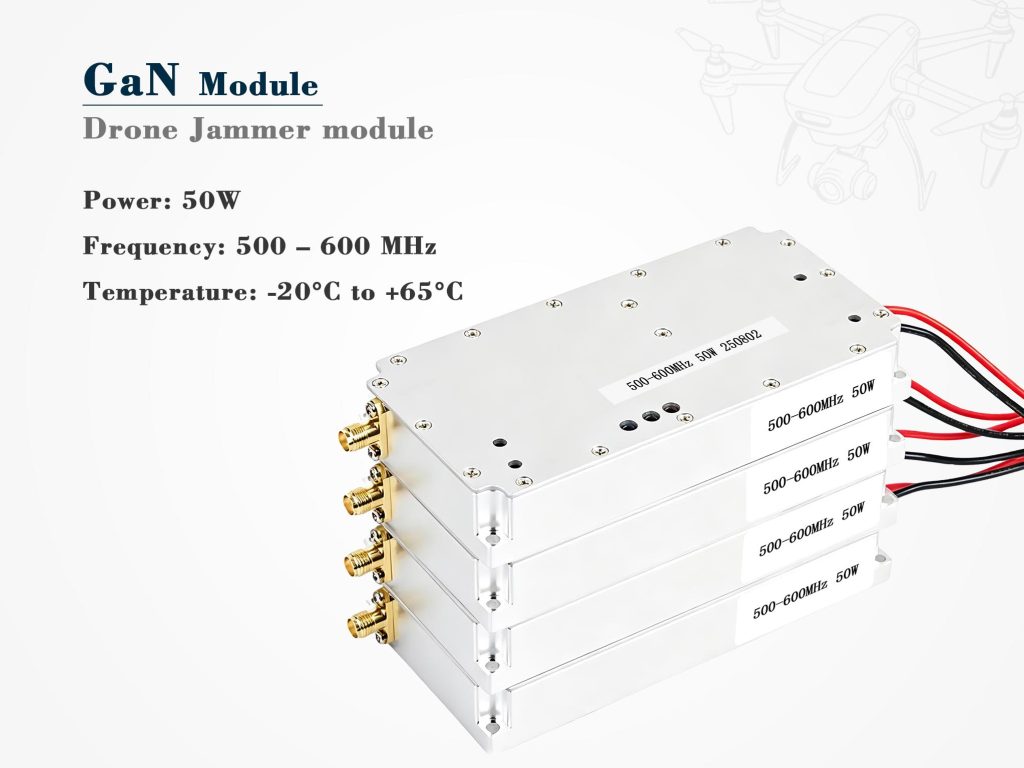

Rugged 50W Drone Jammer Module 500-600MHz GaN

When a mission demands a rugged 50W drone jammer module 500-600MHz, GaN technology completely rewrites the rulebook for compact jammers. This sub‑1 GHz unit pumps out a genuine 50 watts (47±1 dBm) across the whole band, choking drone command‑and‑control links without weighing down a portable kit.

GaN on SiC Foundation

Instead of legacy LDMOS parts, the 50W drone jammer module 500-600MHz relies on a gallium‑nitride‑on‑silicon‑carbide transistor bonded to a thick copper heat spreader. The AB‑class design delivers instant bandwidth without tuning stubs or complex matching networks. Supply 24–28 V DC and the module immediately blankets the channel with high‑density noise, no warm‑up delay required.

The GaN Efficiency Edge

GaN transistors bring higher power density and better thermal conductivity than silicon. That is why this 50W drone jammer module 500-600MHz pulls only 3.2–4.5 A at full throttle. Lower current draw translates directly into less waste heat, smaller cooling hardware, and longer battery runtime during field operations. Because the copper base quickly stabilizes the junction temperature, the output power remains flat even as ambient conditions swing from -20 °C to +65 °C.

Why the 500-600 MHz Band Is Critical

Many commercial and hobbyist drones still rely on UHF links inside the 500–600 MHz window for telemetry and backup control channels. By focusing a 50W drone jammer module 500-600MHz on this slice of spectrum, security teams can sever secondary communication paths that survive traditional 2.4 GHz and 5.8 GHz jamming attempts. It is the missing piece in a layered counter‑drone defense.

Instant‑Wideband Noise Generation

Forget lugging around an external waveform generator. The built‑in high‑speed analog noise source sweeps at 270 KHz by default. Drones that attempt to frequency‑hop across the UHF segment immediately hit a moving wall of interference. Flip the power switch and the 50W drone jammer module starts sweeping instantly—no boot screens, no software crashes, just clean RF denial.

300‑Gram Integration and Antenna Pairing

At barely 300 grams and 117×58×18 mm, the 50W drone jammer module 500-600MHz slides effortlessly into backpacks, vehicle pods, or mast‑mounted arrays. The SMA female port accepts any standard 50‑ohm antenna. For focused directional jamming, match it with a high‑gain log‑periodic antenna from our UHF directional antenna selection. The light weight also makes it a prime candidate for tethered drone platforms.

Custom Sweep Rates and Modulation Sources

If 270 KHz does not match your threat model, you can order the 50W drone jammer module 500-600MHz with a scan rate anywhere from 100 KHz to 500 KHz. The modulation core is just as flexible—swap the internal noise source for a VCO to generate tone jamming, a DDS for precision chirps, or an SDR engine for fully programmable waveforms. Every unit leaves the factory after a full‑power burn‑in test at 50 W.

Built‑In Ruggedness and Protection

Three front‑panel LEDs give you an instant read on power, over‑voltage, and over‑temperature. The GaN amplifier’s thermal foldback circuit automatically throttles output if the heatsink gets too hot, preventing damage during antenna mismatch or continuous key‑down. Together with the copper baseplate, these protections make the 50W drone jammer module 500-600MHz trustworthy for sustained missions in harsh climates.

Staying Legal in the Field

Operating a jammer without proper authorization is illegal in most jurisdictions. This 50W drone jammer module is intended exclusively for government, military, and law‑enforcement counter‑drone teams. Always review FCC regulations and your local spectrum authority’s rules before transmitting. Use directional antennas to tightly contain the jamming footprint and avoid collateral interference.
